GeoMax

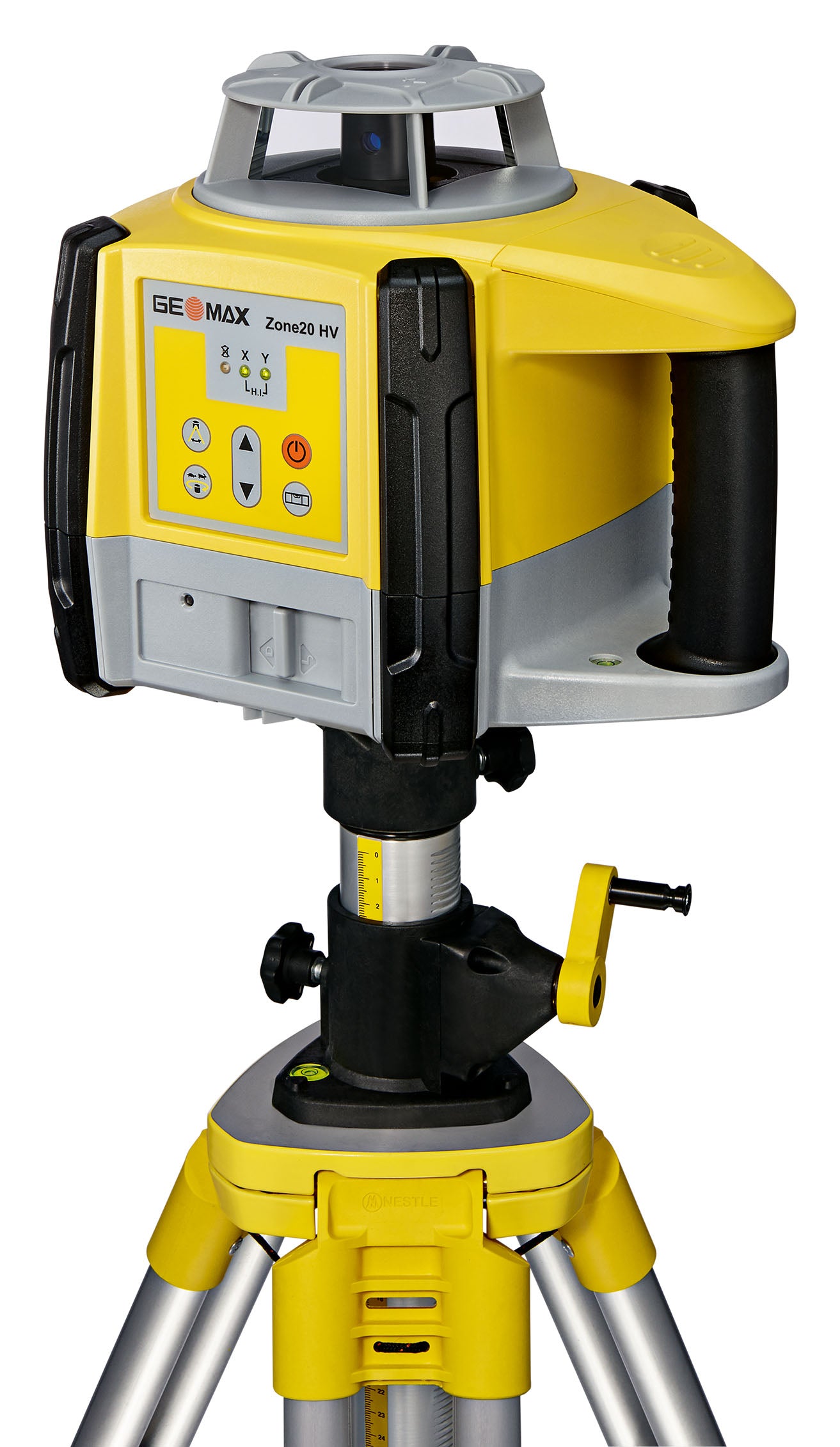

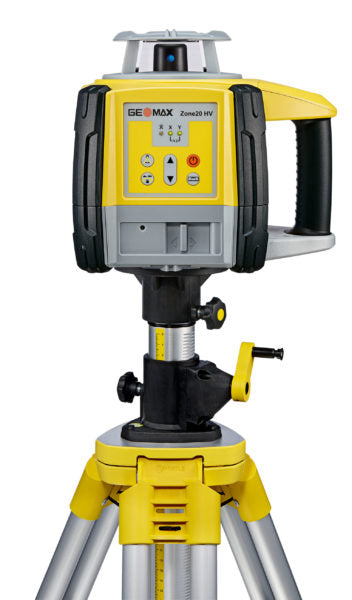

GeoMax Zone 20 HV Laser

GeoMax Zone 20 HV Laser

Regular price $1,169.95
Regular price $1,209.00 Sale price $1,169.95
Sale Sold out
Style

The multipurpose laser Zone20 HV laser offers the Zone20 H basic specifications, plus the capability of vertical leveling and aligning. It includes a long-range remote to adjust and align easily on any job site. To support the toughest working conditions, the rotating head is fully enclosed and the laser complies with IP67 class.

Specs

Head protection:    Fully enclosed

Operating range:    (diameter) 900m / 3000 ft

Self-leveling accuracy:    ± 2.2 mm at 30 m (± 3/32” at 100 ft)

Self-levelling range:    ± 6°

Rotation speed:    120, 300, and 600 rpm

Scanning modes:    10° – 35°

Laser diode type / class:   635 nm (visible) / class 2

Batteries type:   4 D-cell alkaline / Li-Ion

Battery life:    > 40 h

Operating temperature:    -10°C to 50°C

Storage temperature:    -30°C to 70°C

Protection:    IP67
